Lesson 5	Archivelog Mode
Objective	Explain how Oracle’s ARCHIVELOG mode supports continuous data protection and recovery.

Understanding ARCHIVELOG Mode in Oracle Databases

Oracle’s ARCHIVELOG mode is a crucial component of its backup and recovery architecture. It ensures that every transaction can be recovered, even after hardware failures or data loss. When the database operates in ARCHIVELOG mode, filled redo log files are copied (archived) to a safe location by the ARCH process before they are reused. This archived data becomes the foundation for point-in-time recovery and complete database restoration.

Purpose of Archiving

Archiving is the process of copying a filled redo log file to disk or tape. This operation is managed automatically by the ARCH process. The archived copies-called archived redo logs-preserve every transaction since the last backup. With this data, a DBA can recover the database to a precise point in time or to a specific System Change Number (SCN).

Advantages of ARCHIVELOG Mode

Backups can be performed while the database remains online and accessible.
Supports complete recovery after disk failure or data corruption.
Enables point-in-time recovery by applying archived logs to datafiles.
Allows restoration to a specific SCN or before a user error.

While ARCHIVELOG mode provides robust recovery capabilities, it introduces additional administrative tasks:

DBAs must allocate sufficient storage for archived log files.
Archived logs should be backed up regularly to tape or external media.
The number of redo log groups may need to be increased to prevent the LGWR process from stalling while waiting for archiving to complete.

Oracle RMAN Backup and Recovery

Example Scenario

Consider a database configured with two redo log files: log1orc1.ora and log2orc1.ora. When log1orc1.ora becomes full, the LGWR process performs a log switch and begins writing to log2orc1.ora. With ARCHIVELOG mode enabled, the ARCH process copies the contents of log1orc1.ora to an archived file, such as arch001.arc. When log2orc1.ora fills up, another switch occurs, and ARCH archives it to arch002.arc. Each archived log is retained sequentially, providing a continuous record of transactional activity that can be replayed during recovery.

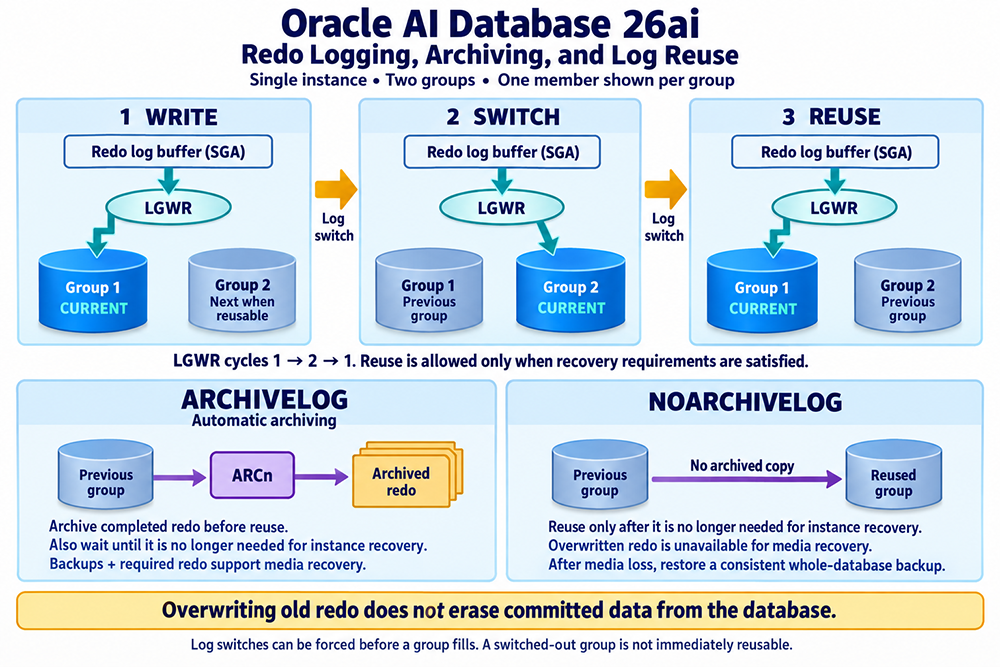

The following figures illustrate the flow of redo data from memory to disk, highlighting how Oracle protects data through log switching and archiving.

Oracle Redo and Archive Logging Process

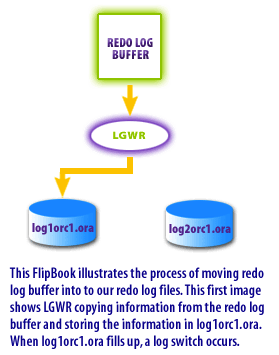

Figure 1:

Redo log buffer and LGWR writing to online redo logs — This diagram shows the initial stage of the redo logging cycle. The **Redo Log Buffer** (in memory) records transaction changes, which are written to **online redo log files** by the **Log Writer (LGWR)**. When one log fills up, LGWR performs a log switch and continues writing to the next log file.

Figure 2:

Oracle log switch from one redo log to another — This image illustrates a **log switch event**. When the current redo log (`log1orc1.ora`) fills up, LGWR switches to the next log (`log2orc1.ora`). In ARCHIVELOG mode, the **ARCH process** then copies the full redo log to an **archived redo log file**. These archived logs are essential for complete and point-in-time recovery.

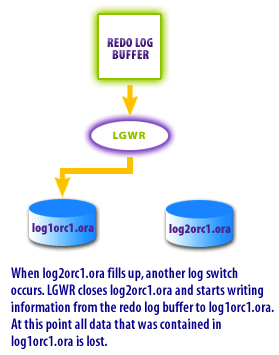

Figure 3:

Redo log overwrite process in NOARCHIVELOG mode — This image depicts the behavior in **NOARCHIVELOG mode**. When LGWR cycles back to `log1orc1.ora` after `log2orc1.ora` fills, the contents of the first log are overwritten. Since no archived copy exists, previously committed transactions are lost, and recovery is limited to the last physical backup.

Operational Modes Compared

Feature	ARCHIVELOG Mode	NOARCHIVELOG Mode
Backup While Online	Supported	Not Supported
Point-in-Time Recovery	Available using archived logs	Not possible beyond last full backup
Redo Log Reuse	After archiving completes	Overwritten immediately
Storage Requirement	Requires additional space for archived logs	Minimal space, limited recovery

Best Practices for ARCHIVELOG Management

Place archived logs on a separate disk from redo logs to avoid I/O contention.
Schedule regular backups of archived logs to off-site storage.
Monitor archive destination space and configure multiple archive log destinations for redundancy.
Use the RMAN (Recovery Manager) tool to automate archive log deletion after backup.

By implementing ARCHIVELOG mode, Oracle ensures that committed transactions are never lost, even if a disk or datafile is damaged. This capability forms the backbone of Oracle’s media recovery strategy, allowing DBAs to restore databases with precision and reliability.

The next lesson explains how to enable ARCHIVELOG mode and verify that the archiving process operates correctly.
