System Stored Procedures

The SQL Configuration Object Stored Procedures Protocol specifies an interface for protocol clients to store and retrieve configuration settings on a protocol server, and to efficiently maintain a distributed cache of those settings by querying for settings that have changed on the protocol server.

Relationship to Other Protocols

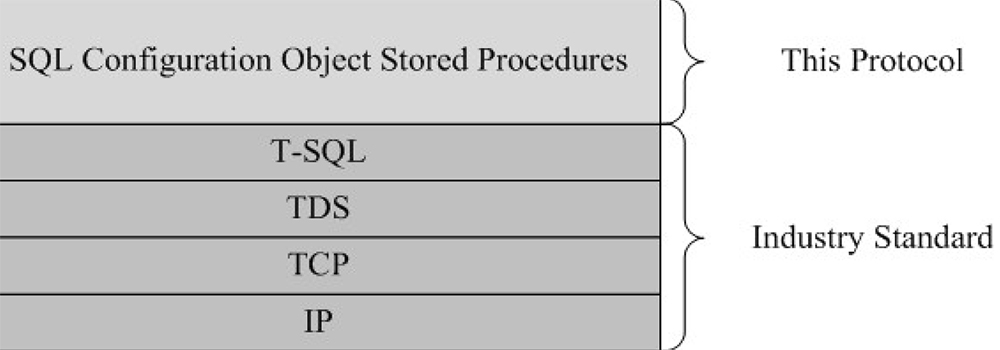

The following diagram shows the transport stack that the protocol uses:

This protocol in relation to other protocols — This protocol in relation to other Protocols

Prerequisites/Preconditions

The operations described by the protocol operate between a protocol client and a back-end database server on which the databases are stored. The protocol client is expected to know the location and connection information for the databases. This protocol requires that the protocol client has appropriate permissions to call the stored procedures stored on the back-end database server.

Applicability Statement

This protocol is designed to maintain configuration objects that are read frequently by many protocol clients, but are updated infrequently and typically by a single protocol client. This protocol is intended for use by protocol clients and protocol servers that are both connected by high-bandwidth, low latency network connections.

Step	System Stored Procedure	Parameters
N/A	Sp_fulltext_service action, value	Action	Value
		resource_usage	Specifies resource priority for the search service	A value of 1 (background) through 5 (dedicated) can be specified, with a default value of 3
		clean_up	Deletes any full-text catalogs that are not in the sysfulltextcatalogs system	This value must be null
		connect_timeout	Waiting period (in seconds) before full text catalogs timeout waiting to be populated	Can be from 1K to 32K
	Action
1	Sp_fulltext_database action	enable	Enables the database for full-text searching	N/A
		disable	Disables the database from full-text searching, but does not delete existing indexes
	Action	root_dir
2	Sp_fulltext_catalog catalog_name, action, root_dir	catalog_name	Name of the full-text catalog	Root_dir is the operating system file name that will be used as the basis to store the full-text index. You cannot specify the fully qualified path of the full-text index itself, only the root directory. This is only valid for a “create” action.
		Create	Creates full-text catalog
		Drop	Deletes full-text catalog
		Start_full	Fully populates an existing full-text catalog
		Stop	Stops population of existing full-text catalog
		Rebuild	Rebuilds existing full-text catalog
	Action
3 and 5	Sp_fulltext_table table_name, action, catalog_name, unique_index_name	Create	Creates the index in the specified database	NA
		Drop	Deletes the index
		Activate	Activates the existing index
		Deactivate	Deactivates the existing index, but does not delete it
	Action	column_name
4	Sp_fulltext_column table_name, column_name, action	Add	Adds a new column to full-text index	column_name is the column name to add to the full-text index. You can add more than one column to a full_text index, but each column needs to be added individually by using the sp_full_text column system procedure once for each column
		Drop	Deletes an existing column from the full-text index
