Lesson 5Implementing full-text searching
ObjectivePractice implementing full-text searching.

Implementing Full-Text Searching

Once a full-text index exists on a table, you are ready to query it. This lesson covers why full-text search exists in the first place, how SQL Server actually builds and ranks a full-text index under the hood, and worked examples of the four Transact-SQL mechanisms used to query one.

Why Full-Text Search Exists

A traditional relational index, a B-tree, sorts column values from left to right. That makes a prefix search like WHERE Title LIKE 'SQL%' fast, but a substring or multi-word search like WHERE Body LIKE '%index%' cannot use that sort order at all: SQL Server has no way to know where inside the column the match will start, so it falls back to scanning every row.

Full-text search solves this with a different data structure entirely. Instead of indexing whole rows by primary key, the engine breaks documents into normalized linguistic tokens and builds an inverted index, a structure that maps every unique word to the documents, and the positions within those documents, where it appears.

How a Full-Text Index Is Built

Building a full-text index happens in stages:
  1. Document filtering (text extraction): if the source data is a binary format, such as a PDF or DOCX stored in a varbinary(max) column, a format-specific filter strips out formatting markup and extracts the raw text.
  2. Tokenization (word breaking): a language-specific word breaker splits the character stream into individual tokens, based on whitespace, punctuation, and language-specific rules. This matters most for languages like Japanese or Chinese that do not use spaces between words.
  3. Stopword removal: high-frequency, low-meaning words, such as "the", "and", "of", and "is", are stripped out using a stoplist, to keep the index compact and avoid false-positive matches.
  4. Linguistic normalization and stemming: a stemmer reduces words to a root or inflectional base form, for example mapping "running", "ran", and "runs" to "run", and case is normalized.
  5. Inverted index construction: the resulting tokens are written into the inverted index itself, a sorted structure where each term points to the documents, columns, and word positions where it occurs.

How SQL Server Ranks Results

Unlike an ordinary WHERE predicate, which is a simple boolean match, full-text queries compute a relevance rank for each matching row. Several factors go into that rank:
  • How often a term appears in a given row's text: a row mentioning "deadlock" a dozen times is treated as more relevant than one mentioning it once.
  • How rare a term is across the whole table being searched: a specific technical term that appears in only a handful of rows carries more weight than a common word that appears everywhere.
  • Proximity: using the word-position data stored in the index, SQL Server favors matches where the searched terms appear close together or in the exact phrase order requested.
Microsoft does not publish the exact formula behind the RANK value. Its own documentation describes rank only in general terms, how well a row matches the selection criteria, and states that the raw rank numbers are not meaningful on their own and can differ between runs of the same query. Treat rank as a relative ordering tool, useful for sorting matches from most to least relevant, rather than as a precisely documented statistical score.

SQL Server 2025 Architecture

Full-text search is built into the relational engine itself, while the riskier work of parsing arbitrary binary documents is isolated into a separate process:
ComponentWhere It RunsRole
Full-Text EngineInside the database engine (sqlservr.exe)Compiles full-text queries, manages index population, and computes relevance ranking.
Full-Text Filter Daemon Launcher (fdhost.exe, service MSSQLFDLauncher)External, sandboxed processRuns document filters, word breakers, and stemmers outside the core engine, so a corrupted or malicious document cannot crash SQL Server itself.
Full-Text CatalogLogical container, stored inside the database's own filegroupsGroups one or more full-text indexes together for administration.
Full-Text Index FragmentsInternal structures, inspectable via sys.fulltext_index_fragmentsStores the inverted index in batches ("fragments"); a catalog with many queryable fragments can be merged with ALTER FULLTEXT CATALOG catalog_name REORGANIZE.
Unique Key IndexOn the base tableA single-column, non-nullable unique index, typically the primary key, that the inverted index uses to map matches back to relational rows.

A Richer Index Example

The previous lesson built a full-text index on a single plain-text column. A full-text index can also span several columns of different kinds at once, including a binary document column:
-- 1. Create a full-text catalog
CREATE FULLTEXT CATALOG TechnicalDocsCatalog AS DEFAULT;
GO

-- 2. Create the full-text index
-- Requires the name of an existing single-column unique or primary key index
CREATE FULLTEXT INDEX ON Production.Documentation
(
    Title LANGUAGE 1033,
    ArticleBody LANGUAGE 1033 STATISTICAL_SEMANTICS,
    BinaryAttachment TYPE COLUMN FileExtension LANGUAGE 1033
)
KEY INDEX PK_Documentation_DocID
ON TechnicalDocsCatalog
WITH (
    CHANGE_TRACKING = AUTO,
    STOPLIST = SYSTEM
);
GO
STATISTICAL_SEMANTICS on ArticleBody additionally builds the key-phrase and document-similarity indexes used by Semantic Search; it requires that feature to be configured separately and is not needed for ordinary CONTAINS or FREETEXT queries. BinaryAttachment TYPE COLUMN FileExtension tells SQL Server to parse the binary document using the file type recorded in FileExtension, the same pattern covered for varbinary(max) columns in the previous lesson.

The Four Query Functions

SQL Server provides two predicate functions, used in a WHERE clause, and two table-valued functions, used in a FROM clause, that additionally return a [KEY] column (the matched row's unique key) and a [RANK] column (relevance, scaled 0 to 1000).
FunctionUsed InPurpose
CONTAINSWHEREPrecise matches: exact words or phrases, prefix wildcards, boolean logic (AND, OR, AND NOT), and proximity (NEAR).
FREETEXTWHERELooser, natural-language matching: the engine tokenizes the search string, removes stopwords, generates inflectional forms, and matches on meaning rather than exact wording.
CONTAINSTABLEFROMSame matching rules as CONTAINS, returned as a rowset with [KEY] and [RANK] columns so results can be joined and ordered by relevance.
FREETEXTTABLEFROMSame matching rules as FREETEXT, also returned as a rowset with [KEY] and [RANK] columns.

Exact, prefix, and proximity search with CONTAINSTABLE:
SELECT
    d.DocID,
    d.Title,
    ft.[RANK] AS RelevanceScore
FROM Production.Documentation AS d
INNER JOIN CONTAINSTABLE(
    Production.Documentation,
    (Title, ArticleBody),
    -- Inflectional forms of "optimize" within 5 words of a prefix match on "index*"
    'NEAR((FORMSOF(INFLECTIONAL, optimize), "index*"), 5)'
) AS ft
    ON d.DocID = ft.[KEY]
ORDER BY ft.[RANK] DESC;
Natural-language search with FREETEXTTABLE:
SELECT
    d.DocID,
    d.Title,
    ft.[RANK] AS RelevanceScore
FROM Production.Documentation AS d
INNER JOIN FREETEXTTABLE(
    Production.Documentation,
    ArticleBody,
    'how to troubleshoot transaction log bloat and lock escalation'
) AS ft
    ON d.DocID = ft.[KEY]
WHERE ft.[RANK] >= 100
ORDER BY ft.[RANK] DESC;

Four Patterns Against an Employees Table

The following runnable examples apply all four functions to a single, concrete case: searching the Notes column of a dbo.Employees table, with EmployeeID as the full-text unique key, assuming the full-text index has already been created and populated, as in the previous lesson.

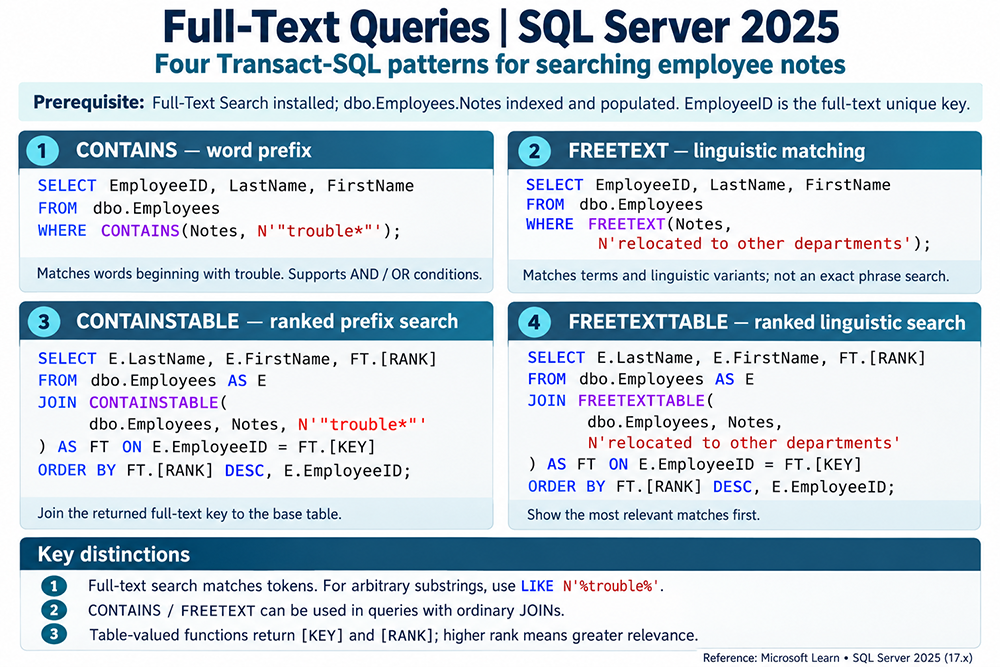

Four Transact-SQL patterns for searching employee notes in SQL Server 2025: CONTAINS, FREETEXT, CONTAINSTABLE, and FREETEXTTABLE
Four Transact-SQL patterns for searching employee notes in SQL Server 2025

CONTAINS, word prefix:
SELECT EmployeeID, LastName, FirstName
FROM dbo.Employees
WHERE CONTAINS(Notes, N'"trouble*"');
Matches rows where a word beginning with "trouble" appears. Supports AND/OR conditions, similar in spirit to a LIKE search but far more capable. Note the prefix term syntax: a trailing asterisk inside double quotes, not a leading and trailing asterisk as in a LIKE pattern; full-text search has no equivalent of a leading wildcard.

FREETEXT, linguistic matching:
SELECT EmployeeID, LastName, FirstName
FROM dbo.Employees
WHERE FREETEXT(Notes, N'relocated to other departments');
Matches terms and their linguistic variants rather than an exact phrase.

CONTAINSTABLE, ranked prefix search:
SELECT E.LastName, E.FirstName, FT.[RANK]
FROM dbo.Employees AS E
JOIN CONTAINSTABLE(
    dbo.Employees, Notes, N'"trouble*"'
) AS FT ON E.EmployeeID = FT.[KEY]
ORDER BY FT.[RANK] DESC, E.EmployeeID;
Joins the returned full-text key back to the base table so results can be ordered by relevance.

FREETEXTTABLE, ranked linguistic search:
SELECT E.LastName, E.FirstName, FT.[RANK]
FROM dbo.Employees AS E
JOIN FREETEXTTABLE(
    dbo.Employees, Notes, N'relocated to other departments'
) AS FT ON E.EmployeeID = FT.[KEY]
ORDER BY FT.[RANK] DESC, E.EmployeeID;
Shows the most relevant matches first.

A few distinctions worth keeping in mind:
  • Full-text search matches whole tokens. For an arbitrary substring match, you still need LIKE N'%trouble%'.
  • CONTAINS and FREETEXT can be used in ordinary queries with normal joins, since they are predicates, not table sources.
  • The table-valued functions, CONTAINSTABLE and FREETEXTTABLE, return [KEY] and [RANK]; a higher rank means greater relevance.

Beyond Lexical Search: Pairing with Vector Search


Implement Full-Text Searching: Exercise

Click the exercise link below to practice creating a full-text query.
Implement FullText Searching - Exercise

In the next lesson, we will review the information covered in this module.
