Backup Strategies in Oracle Database 23ai

Oracle Database 23ai provides a comprehensive portfolio of backup and recovery strategies because availability problems and recovery requirements vary dramatically across failure scenarios. A database crash during routine operation requires different recovery mechanisms than a corrupted datafile, a site-wide disaster, or a ransomware attack encrypting production systems.

Effective backup strategy design centers on two critical objectives:

• Recovery Time Objective (RTO): Maximum acceptable downtime—how quickly must the database be operational after a failure?
• Recovery Point Objective (RPO): Maximum acceptable data loss—how much transaction history can the business tolerate losing?

Oracle 23ai delivers technologies spanning the complete recovery spectrum: from automatic instance recovery (RTO: seconds, RPO: zero) to traditional RMAN restore operations (RTO: hours, RPO: last backup + archived logs) to zero data loss disaster recovery with Data Guard (RTO: minutes, RPO: zero).

This lesson examines each backup strategy, explains when to apply it, and provides practical guidance for implementation in modern Oracle 23ai environments including cloud deployments, multitenant architectures, and hybrid configurations.

Oracle 23ai backup strategies address different failure types and recovery requirements:

Strategy	Failure Type	Typical RTO	Typical RPO	Primary Use Case
Instance Recovery	Instance crash, power loss	Seconds to minutes	Zero	Automatic restart after unexpected shutdown
RMAN Physical Backup	Storage failure, corruption	Hours	Last backup + logs	Media recovery, file restoration
Data Guard	Site disaster	Minutes	Zero (Max Protection)	Geographic disaster recovery, HA
Active Data Guard	Site disaster + offload	Minutes	Near-zero	DR + read-only reporting/analytics
Flashback Database	Logical errors	Minutes	Retention window	Rewind database to prior state
Data Pump	Logical corruption	Hours	Export time	Schema/object-level recovery
Cloud Backup	Storage failure	Hours	Last backup + logs	Off-site backup, cloud migration
ZDLRA	Storage failure	Minutes	Near-zero	Enterprise backup consolidation

Most production environments implement multiple strategies: Instance Recovery for routine crashes, RMAN for media recovery, Data Guard for disasters, Flashback for logical errors, and Data Pump for selective object recovery.

Crash recovery—also called instance recovery—handles unexpected database instance failures when datafiles remain intact but the database process terminates abnormally (power loss, OS crash, instance kill). Oracle 23ai performs instance recovery automatically during database startup, requiring no DBA intervention.

How Instance Recovery Works

Instance recovery uses two complementary mechanisms:

1. Redo roll-forward: Reapplies committed transactions from online and archived redo logs that weren't written to datafiles before the crash
2. Undo rollback: Reverses uncommitted transactions using undo segments, restoring transactional consistency

Fast-Start Fault Recovery

Oracle's Fast-Start Fault Recovery feature bounds instance recovery time through controlled checkpointing:

• FAST_START_MTTR_TARGET: Specifies target recovery time in seconds (default: 0 = disabled)
• Incremental checkpointing: Writes dirty buffers to disk progressively, reducing recovery work
• Predictable recovery: Database adjusts checkpoint frequency to meet MTTR target

Configuration example:

-- Set instance recovery target to 120 seconds
ALTER SYSTEM SET FAST_START_MTTR_TARGET = 120 SCOPE=BOTH;

-- Verify current estimated recovery time
SELECT estimated_mttr FROM V$INSTANCE_RECOVERY;

When Instance Recovery Applies

• Database instance crashes due to bug or hardware failure
• Server loses power without clean shutdown
• Operating system crashes
• Instance kill (shutdown abort or process termination)

Limitation: Instance recovery only works when datafiles remain intact and accessible. If storage is damaged or files are missing, RMAN media recovery is required.

When failures involve storage corruption, missing datafiles, or hardware failures destroying disk arrays, Recovery Manager (RMAN) provides the foundation for restore and recovery operations. RMAN is Oracle's enterprise backup platform, offering block-level intelligence, automated backup management, and comprehensive recovery capabilities.

RMAN Backup Types

RMAN supports multiple backup approaches, each optimized for different scenarios:

• Full database backups: Complete baseline backup of all datafiles, control file, and SPFILE
• Incremental backups: Capture only blocks changed since last backup (Level 0 = base, Level 1 = incremental)
• Image copies: Identical copies of datafiles usable directly for recovery without restoration
• Archived redo log backups: Required for point-in-time recovery and complete recovery
• Control file autobackups: Automatic backup after structural changes for disaster recovery

Backup Strategy Patterns

Pattern 1: Weekly Full + Daily Incremental

-- Sunday: Full backup (Level 0)
RMAN> BACKUP INCREMENTAL LEVEL 0 DATABASE PLUS ARCHIVELOG;

-- Monday-Saturday: Differential incremental (Level 1)
RMAN> BACKUP INCREMENTAL LEVEL 1 DATABASE PLUS ARCHIVELOG;

Pattern 2: Incrementally Updated Image Copies

-- Initial: Create image copies
RMAN> BACKUP AS COPY DATABASE;

-- Daily: Apply incremental backups to image copies (fastest recovery)
RMAN> BACKUP INCREMENTAL LEVEL 1 FOR RECOVER OF COPY WITH TAG 'INCR_UPDATE' DATABASE;
RMAN> RECOVER COPY OF DATABASE WITH TAG 'INCR_UPDATE';

RMAN Best Practices for Oracle 23ai

1. Enable block change tracking: Dramatically speeds incremental backups for large databases
2. Use compression: Reduces backup storage by 50-90% with minimal CPU overhead
3. Configure retention policy: Align with business recovery requirements (e.g., 30-day recovery window)
4. Implement backup validation: Regularly verify backup integrity before disasters occur
5. Parallelize operations: Configure multiple channels for faster backup and restore

Validation example:

-- Validate all backups without restoration
RMAN> RESTORE DATABASE VALIDATE;

-- Check for physical and logical block corruption
RMAN> BACKUP VALIDATE CHECK LOGICAL DATABASE;

Cloud Backup Integration

Oracle 23ai enables direct backup to cloud storage, eliminating on-premises backup infrastructure:

• OCI Object Storage: RMAN backs up directly to Oracle Cloud Infrastructure with unlimited capacity
• Cross-region replication: Automatically replicate backups across geographic regions for disaster recovery
• Hybrid cloud strategies: Back up on-premises databases to cloud for off-site protection

Configuration example:

-- Configure cloud backup destination
CONFIGURE CHANNEL DEVICE TYPE 'SBT_TAPE' PARMS
  'SBT_LIBRARY=/lib/libopc.so, SBT_PARMS=(OPC_PFILE=/home/oracle/opc.ora)';

-- Backup to OCI Object Storage
BACKUP DATABASE PLUS ARCHIVELOG;

Oracle Data Guard addresses site-level failures and provides high availability through synchronized standby databases that can assume the primary role during planned maintenance or unplanned disasters. Data Guard is the standard enterprise solution for zero-data-loss disaster recovery and geographic redundancy.

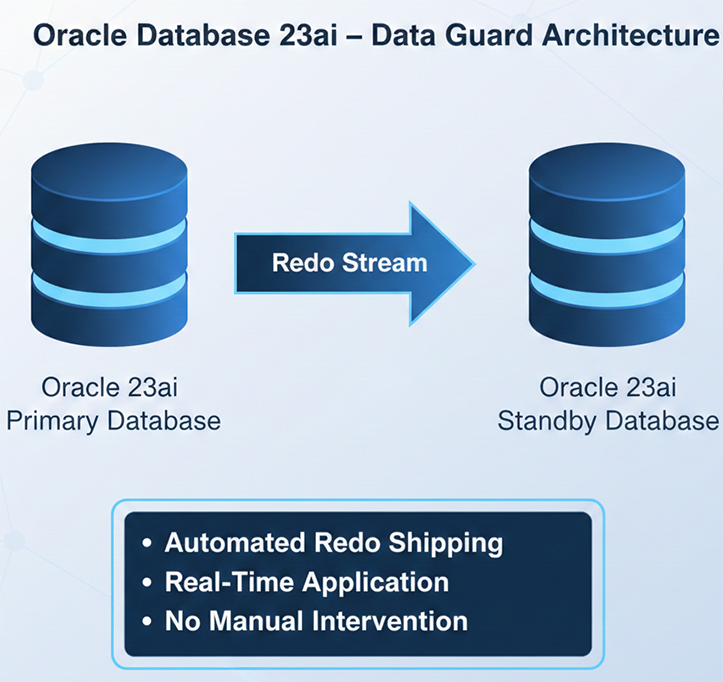

Data Guard Architecture

Data Guard maintains one or more standby databases synchronized with the primary through automatic redo transport and apply:

Data Guard Use Cases

• Geographic disaster recovery: Standby in different data center or cloud region
• Planned maintenance: Switchover to standby, perform maintenance on primary, switch back with zero downtime
• Data protection: Multiple standbys for layered protection (local + remote)
• Read offload: With Active Data Guard, run reporting on standby (covered next section)

Fast-Start Failover (FSFO)

Automatic failover when primary becomes unavailable:

• Observer process monitors primary and standby health
• Automatically fails over to standby when primary is unreachable
• Typical failover time: 30-60 seconds
• Requires Data Guard Broker configuration

Active Data Guard extends standard Data Guard by keeping the physical standby database open for read-only queries while redo apply continues, enabling real-time reporting and analytics without impacting primary database performance.

Active Data Guard Benefits

• Workload isolation: OLTP on primary, analytics/reporting on standby
• Backup offload: Run RMAN backups against standby, eliminating primary impact
• Testing and validation: Test queries and applications against production-like data
• Near-real-time analytics: Query data with minimal lag (typically < 1 second)
• No additional storage: Same standby database serves both DR and reporting purposes

Implementation Example

-- On standby: Open in read-only mode with real-time apply
ALTER DATABASE RECOVER MANAGED STANDBY DATABASE DISCONNECT;
ALTER DATABASE OPEN READ ONLY;

-- Enable real-time apply (apply redo as it arrives, not batched)
ALTER DATABASE RECOVER MANAGED STANDBY DATABASE USING CURRENT LOGFILE DISCONNECT;

Flashback technologies enable rapid recovery from logical errors without traditional backup restoration, dramatically reducing recovery time for human errors, batch job mistakes, and application bugs.

Flashback Database

Rewind entire database to a previous point in time without restore/recovery:

• Use case: Failed application upgrade, batch job corrupts multiple tables
• Typical recovery time: Minutes instead of hours for RMAN restore
• RPO: Any second within configured retention window (e.g., 24 hours)
• Requirement: Fast Recovery Area with flashback logs enabled

Configuration and usage:

-- Enable Flashback Database with 24-hour retention
ALTER DATABASE FLASHBACK ON;
ALTER SYSTEM SET DB_FLASHBACK_RETENTION_TARGET = 1440;  -- minutes

-- Flash back to 2 hours ago
SHUTDOWN IMMEDIATE;
STARTUP MOUNT;
FLASHBACK DATABASE TO TIMESTAMP (SYSTIMESTAMP - INTERVAL '2' HOUR);
ALTER DATABASE OPEN RESETLOGS;

Flashback Table

Restore individual tables to previous states without affecting other database objects:

-- Enable row movement (required for Flashback Table)
ALTER TABLE orders ENABLE ROW MOVEMENT;

-- Flash back table to before bad batch job
FLASHBACK TABLE orders TO TIMESTAMP
  TO_TIMESTAMP('2026-01-28 14:00:00', 'YYYY-MM-DD HH24:MI:SS');

Flashback Drop

Recover accidentally dropped tables from the recycle bin:

-- View dropped objects
SELECT object_name, original_name, droptime FROM recyclebin;

-- Restore dropped table
FLASHBACK TABLE customers TO BEFORE DROP;

Flashback Query and Transaction

• Flashback Query: Query data as it existed at a previous time to identify when errors occurred
• Flashback Transaction: Undo specific transactions and their dependent transactions
• Flashback Version Query: See all versions of a row across time

Example: Find deleted rows

SELECT * FROM orders
AS OF TIMESTAMP (SYSTIMESTAMP - INTERVAL '1' HOUR)
WHERE order_id = 12345;

While RMAN handles physical database backups, Data Pump provides logical backups for schema-level recovery, object migration, and selective data exports. Data Pump complements RMAN rather than replacing it.

Data Pump Use Cases

• Schema-level recovery: Restore individual schemas without full database recovery
• Object migration: Move tables, indexes, or entire schemas between databases
• Data subsetting: Export filtered datasets for development/testing
• Database upgrades: Export from old version, import to new version
• Cross-platform migration: Move data between different operating systems

Data Pump Export Examples

-- Full database export
expdp system/password FULL=Y DIRECTORY=DATA_PUMP_DIR DUMPFILE=fulldb.dmp

-- Schema export with compression
expdp system/password SCHEMAS=HR,SALES DIRECTORY=DATA_PUMP_DIR \
  DUMPFILE=hr_sales_%U.dmp PARALLEL=4 COMPRESSION=ALL

-- Table-level export with query filter
expdp system/password TABLES=orders DIRECTORY=DATA_PUMP_DIR \
  DUMPFILE=orders_archive.dmp \
  QUERY='WHERE order_date < SYSDATE - 365'

Data Pump Best Practices

1. Use parallelism: Speed up exports/imports with PARALLEL parameter
2. Enable compression: Reduce dump file size significantly (COMPRESSION=ALL)
3. Implement retention: Keep logical backups for schema-level recovery scenarios
4. Test imports regularly: Verify Data Pump exports can be successfully imported

Oracle Autonomous Database provides fully automated backup and recovery with zero DBA administration:

Autonomous Database Automatic Backups

• Automatic daily backups: Full backups run automatically during maintenance window
• Continuous incremental backups: Changes backed up every 5 minutes
• 60-day retention: Configurable from 1 to 60 days
• Point-in-time recovery: Restore to any second within retention window
• One-click restore: Recovery operations from Cloud Console without RMAN commands

Key Benefits

• No backup scripting or scheduling required
• No DBA monitoring of backup jobs
• Automatic retention policy enforcement
• Integrated with OCI Object Storage for durability
• Cross-region backup replication available

Zero Data Loss Recovery Appliance (ZDLRA) is Oracle's engineered system providing enterprise-wide backup consolidation with near-zero RPO and minimal RTO:

ZDLRA Capabilities

• Real-time redo transport: Continuous redo streaming provides near-zero RPO (seconds)
• Incremental forever: Eliminates full backups; maintains virtual full backups automatically
• Delta store architecture: Only changed blocks stored, dramatically reducing backup storage
• Automatic validation: Continuous backup integrity checking without manual intervention
• Centralized management: Protect hundreds of databases from single appliance
• Recovery-optimized storage: Backups stored in format optimized for rapid recovery

When to Consider ZDLRA

• Enterprise environments with 50+ Oracle databases
• Zero or near-zero RPO requirements
• Need for centralized backup infrastructure
• Desire to eliminate tape backup infrastructure

Critical principle: Untested backups are unreliable backups. Regular validation ensures recoverability when disasters occur.

RMAN Validation Commands

-- Validate entire database without restoration
RMAN> RESTORE DATABASE VALIDATE;

-- Validate specific tablespace
RMAN> RESTORE TABLESPACE users VALIDATE;

-- Check for block corruption in backups
RMAN> BACKUP VALIDATE CHECK LOGICAL DATABASE;

-- Verify archived logs can be restored
RMAN> RESTORE ARCHIVELOG ALL VALIDATE;

Backup Testing Schedule

1. Daily: Automated backup validation (VALIDATE commands)
2. Weekly: Verify backup job completion and storage consumption
3. Monthly: Test restore of sample tablespace or PDB to non-production environment
4. Quarterly: Full disaster recovery test (complete database restore)
5. After major changes: Test backups after storage reconfigurations or infrastructure changes

Select backup strategies based on specific failure scenarios and business recovery requirements:

Decision Framework

If your primary concern is fast restart after crashes:

• Rely on Instance Recovery with Fast-Start MTTR tuning
• Configure FAST_START_MTTR_TARGET for predictable recovery times
• Ensure adequate redo log sizing and checkpoint intervals

If your concern is storage corruption or file loss:

• Standardize on RMAN with tested restore procedures
• Implement incremental backup strategy (weekly Level 0, daily Level 1)
• Enable block change tracking for large databases
• Configure backup compression and encryption
• Validate backups regularly

If your concern is site outage and zero data loss:

• Implement Data Guard with Maximum Protection mode
• Configure Fast-Start Failover for automatic disaster response
• Position standbys in geographically separate locations
• Test switchover/failover procedures quarterly

If you want reporting offload without losing DR readiness:

• Deploy Active Data Guard for read-only standby access
• Offload batch reporting to standby database
• Run RMAN backups against standby instead of primary

If you need rapid recovery from logical errors:

• Enable Flashback Database with appropriate retention
• Configure Fast Recovery Area for flashback logs
• Train operations staff on Flashback procedures

If you need object-level portability:

• Implement Data Pump exports for schemas and critical tables
• Schedule regular schema exports independent of RMAN backups
• Test import procedures to verify recoverability

If operating in cloud or hybrid environments:

• Configure cloud backup to OCI Object Storage
• Leverage Autonomous Database automatic backups when possible
• Implement cross-region replication for geographic protection

For enterprise-scale environments requiring near-zero RPO:

• Consider Zero Data Loss Recovery Appliance (ZDLRA)
• Consolidate backup infrastructure for 50+ databases
• Eliminate tape backup complexity

Best practice: Most production environments implement multiple, complementary strategies rather than relying on a single approach.

Example: E-Commerce Database Protection

Scenario: 5 TB transactional database, 15-minute RPO, 1-hour RTO requirements

Layered strategy:

1. Instance Recovery: Automatic crash recovery (FAST_START_MTTR_TARGET = 60)
2. RMAN: Nightly incremental backups to FRA with 30-day retention
3. Data Guard: Physical standby in secondary data center (Maximum Availability mode)
4. Active Data Guard: Standby open read-only for reporting, backup offload
5. Flashback Database: 24-hour retention for rapid logical error recovery
6. Data Pump: Weekly schema exports for critical application schemas
7. Cloud backup: Monthly full backups replicated to OCI Object Storage

Result: Protection against all failure scenarios with appropriate recovery capabilities for each

Modern backup strategies must address security threats, particularly ransomware:

Ransomware Protection

• Immutable backups: Write backups to storage that cannot be modified or deleted
• Air-gapped copies: Maintain offline backup copies disconnected from production network
• Backup encryption: Protect backup data from unauthorized access
• Access controls: Restrict backup deletion to privileged accounts with MFA
• Regular testing: Verify backups can restore to clean systems

Compliance Requirements

Backup strategies often must satisfy regulatory requirements:

• HIPAA: Protected health information must be encrypted in backups
• PCI-DSS: Payment card data requires encrypted backups with access logging
• GDPR: Personal data in backups subject to same protection as production data
• SOX: Financial data retention and recovery audit trails required

This lesson provided a comprehensive overview of Oracle 23ai backup strategies, from automatic instance recovery to enterprise disaster recovery architectures. Understanding when to apply each strategy—and how to combine them effectively—is fundamental to protecting business-critical data.

The next lesson examines backup implementation details for export/import workflows, database repair scenarios, and integration with Oracle Enterprise Manager Cloud Control for centralized backup management. You'll learn practical configuration steps, troubleshooting techniques, and operational procedures for maintaining robust backup environments.

Key takeaway: Effective data protection requires multiple, complementary backup strategies. The question is not "which strategy should I choose?" but rather "which combination of strategies meets my specific RPO, RTO, and operational requirements?"
