Lesson 3	Java and Oracle
Objective	Explain external Java connections, stored integration, and Oracle JVM memory

Java and Oracle AI Database 26ai

Java integrates with Oracle in two execution environments. An external Java application runs in its own JVM and connects to a database service through JDBC. Stored Java runs inside the database using Oracle JVM (OJVM), where SQL and PL/SQL can invoke published Java methods. Both approaches remain relevant in Oracle AI Database 26ai, but they have different deployment, resource, and security requirements.

For a web service, an external application tier is usually a practical starting point: it can scale and deploy independently of the database. Stored Java is an option when a suitable Java routine needs to execute within a database session. Choose according to the workload rather than assuming that either location is always faster.

1. Integrating Stored Java with SQL and PL/SQL

Stored Java requires Oracle JVM to be installed and available in the target database environment. Java classes are loaded into a database schema, and a call specification publishes a Java method as a SQL-callable function or procedure. The specification maps SQL parameters and return values to compatible Java types.

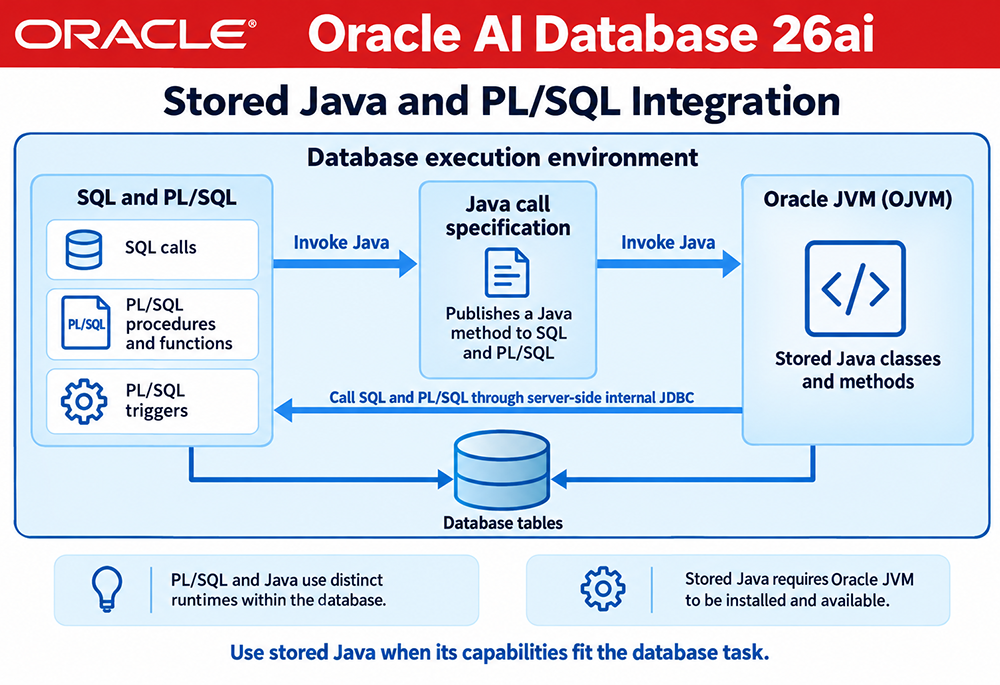

SQL and PL/SQL invoke stored Java through a Java call specification; Oracle JVM can call SQL and PL/SQL through server-side internal JDBC. — Figure 1: A Java call specification connects SQL and PL/SQL to stored Java methods in Oracle JVM. PL/SQL and Java use distinct runtimes, while both can access database tables.

Stored Java can use the server-side internal JDBC driver to access SQL and PL/SQL in its existing database session and transaction. This local access does not require a new network connection. The internal driver does not provide remote database connections or automatic commits. Define transaction ownership explicitly and close statements and result sets when finished; do not treat the default internal connection as a borrowed application-pool connection.

Before deploying a library into OJVM, verify its Java version, dependencies, supported APIs, and required permissions. An external application's JDK version does not establish which bytecode or libraries the database JVM supports. Filesystem and network access also require appropriate database permissions and may be restricted by the cloud service.

2. JDBC Outside and Inside the Database

The JDBC API gives Java code a consistent way to submit SQL, bind parameters, process results, and call stored procedures. The driver and connection behavior depend on where the Java code executes.

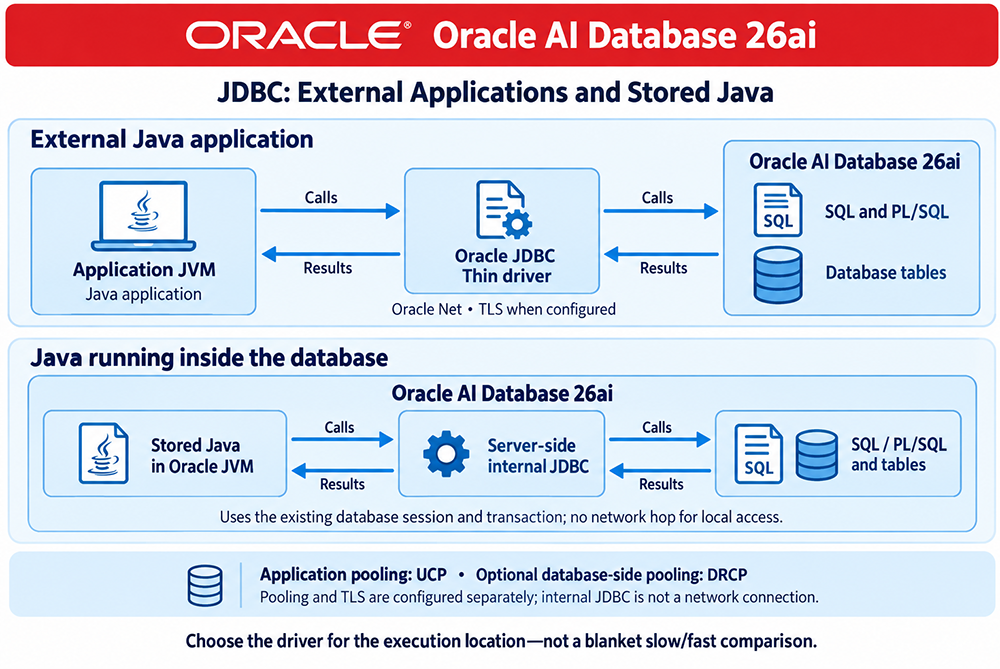

External Java uses the Oracle JDBC Thin driver over Oracle Net; stored Java uses server-side internal JDBC within the existing database session and transaction. — Figure 2: External applications use JDBC Thin for network access to Oracle. Stored Java uses server-side internal JDBC for local access within its current database session and transaction, without a network hop.

Choose the JDBC connection for the execution location
Execution location	Typical connection	Key distinction
Application JVM outside the database	Oracle JDBC Thin to a database service	Uses a network connection; configure authentication, transport security, and optional application pooling.
Oracle JVM accessing its own database session	Server-side internal JDBC	Uses the existing session and local transaction rather than establishing a separate network session.
Stored Java accessing a remote database or a separate session	Server-side JDBC Thin, where permitted	Creates a separate connection with its own configuration and transaction context.

The JDBC Thin driver is pure Java and does not require an Oracle Client installation. It is used for both on-premises and cloud databases. OJVM is not required merely to accept connections from an external Java application.

3. Oracle JVM: Shared Definitions and Private Session State

Oracle JVM can share reusable class and method definitions while maintaining mutable Java state for individual database sessions. For example, a static Java field can retain a value across calls in one session without becoming a global variable shared by every database session.

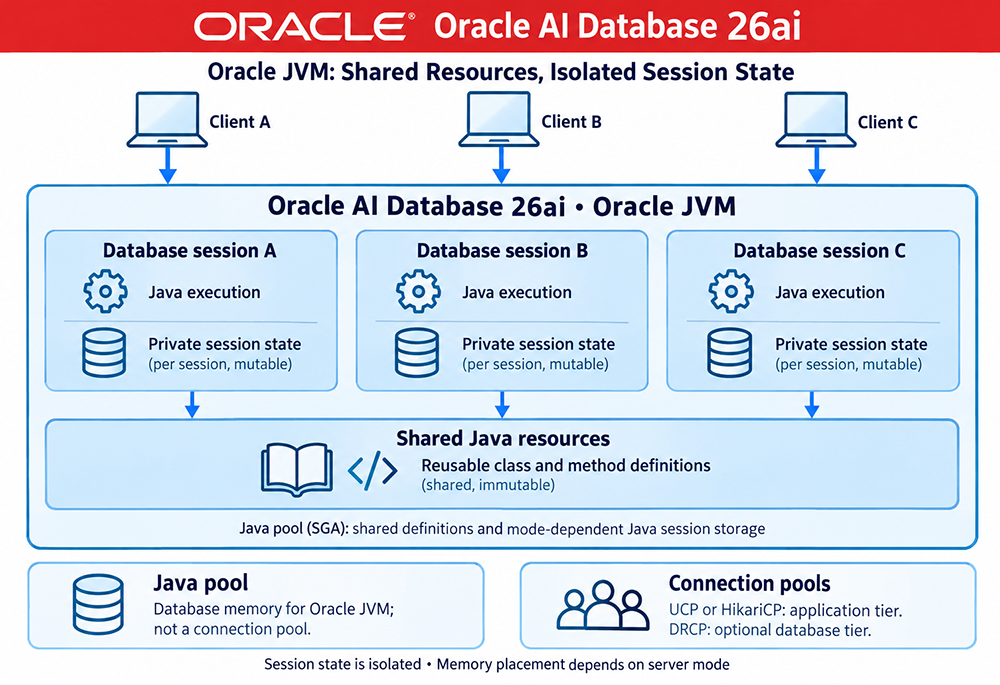

Three database sessions have private mutable Java state and share reusable class and method definitions; the Java memory pool is distinct from connection pools. — Figure 3: Oracle JVM shares reusable Java definitions while isolating mutable state by database session. The Java pool is database memory, not a connection pool; memory placement depends on the server mode.

The Java pool is part of the System Global Area (SGA). It supports Oracle JVM memory requirements, including shared definitions and, depending on the server mode, Java session storage. The diagram is a conceptual view, not a claim that every Java object resides in one SGA area.

This distinction matters when connections are reused. A logical request in a web application is not necessarily a new database session. Avoid assuming that session state is automatically cleared between users of an application pool. Prefer explicit request data and use the pool's supported session initialization and reset mechanisms when state is necessary.

4. Choose SQL, PL/SQL, or Java for the Task

SQL and declarative constraints: Use set-based SQL for data operations and constraints for rules the database can enforce declaratively.
PL/SQL: Use stored procedures and packages for database-centric transactional operations and reusable data logic.
External Java: Use the application tier for web APIs, integration, document processing, service orchestration, and workloads that benefit from independent scaling or Java libraries.
Stored Java: Consider it for a compatible Java routine that benefits from executing inside the database session. Account for its database CPU, memory, deployment, and permission requirements.

Keep large data operations close to the data when practical, but measure the complete workload. Moving CPU-intensive application processing into the database can increase contention rather than reduce it. Browser applets are not part of this architecture; browser clients communicate with application or REST endpoints.

5. Java Applications on Oracle Cloud Infrastructure

External Java applications can connect to Oracle databases on OCI using JDBC Thin. Applications may run on virtual machines, in containers, or on other supported application platforms. Configure the database service, reachable network path, authentication, and client libraries for the deployment.

Autonomous AI Database: Follow the connection instructions for the selected TLS or mutual TLS configuration. Wallet requirements depend on the authentication mode and client configuration; not every TLS connection requires a downloaded client wallet.
OCI database systems: Configure private routing and network access controls where appropriate. RAC deployments can use SCAN addresses and database services; SCAN is not a requirement for every database deployment.
Stored Java in cloud services: Check the specific service's OJVM support and restrictions. Autonomous AI Database documents Oracle Java support, but its loading and runtime restrictions differ from those of a self-managed database.
REST access: ORDS can expose authorized SQL and PL/SQL operations through HTTP APIs. It complements direct JDBC access and can serve applications written in many languages.

Configure encryption for each network hop. HTTPS to an application server does not secure that server's database connection automatically. Keep application credentials outside source code and grant only the required database privileges.

6. Application Pooling and Optional DRCP

Universal Connection Pool (UCP) runs in the Java application and reuses physical database connections. Create and manage a pool at application startup, borrow a connection for a unit of work, and return it promptly. Size the total connections across all application instances against database capacity.

Database Resident Connection Pooling (DRCP) reuses server processes and sessions on the database side. It can complement application pooling for suitable workloads. It is not the Java pool, and it should not be enabled simply because an application uses Java.

Using DRCP requires an available, started server-side pool, a pooled connection request such as SERVER=POOLED in the connect descriptor, and appropriate client configuration. Setting oracle.jdbc.DRCPConnectionClass alone does not request a pooled server. Review session-state compatibility before combining DRCP with stateful application behavior.

7. Reference Pattern: JDBC Thin with UCP

The following class separates pool creation from query execution. Call createPool() once during application startup and reuse the returned pool. The query assumes that PRODUCTS has PRODUCT_ID, NAME, and PRICE columns and that the application account has permission to read them.

Install compatible Oracle JDBC and UCP libraries for the application's JDK. Configure APP_DB_URL, APP_DB_USER, and APP_DB_PASSWORD through deployment configuration. Where a wallet-based TNS alias is used, an example URL is jdbc:oracle:thin:@mydb_low?TNS_ADMIN=/opt/app/wallet; substitute an actual service alias and configure the required wallet libraries and credentials. The pool settings below are illustrative.

import java.math.BigDecimal;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import oracle.ucp.jdbc.PoolDataSource;
import oracle.ucp.jdbc.PoolDataSourceFactory;

public final class ProductRepository {
    public static PoolDataSource createPool() throws SQLException {
        PoolDataSource pool = PoolDataSourceFactory.getPoolDataSource();
        pool.setConnectionFactoryClassName(
                "oracle.jdbc.pool.OracleDataSource");
        pool.setURL(requiredEnvironment("APP_DB_URL"));
        pool.setUser(requiredEnvironment("APP_DB_USER"));
        pool.setPassword(requiredEnvironment("APP_DB_PASSWORD"));
        pool.setInitialPoolSize(1);
        pool.setMinPoolSize(1);
        pool.setMaxPoolSize(10);
        pool.setConnectionWaitTimeout(10);
        pool.setValidateConnectionOnBorrow(true);
        return pool;
    }

    public static void listProducts(PoolDataSource pool,
                                    BigDecimal minimumPrice)
            throws SQLException {
        String sql = "SELECT product_id, name FROM products "
                   + "WHERE price > ?";
        try (Connection connection = pool.getConnection();
             PreparedStatement statement = connection.prepareStatement(sql)) {
            statement.setBigDecimal(1, minimumPrice);
            try (ResultSet results = statement.executeQuery()) {
                while (results.next()) {
                    System.out.println(results.getLong("product_id")
                            + ": " + results.getString("name"));
                }
            }
        }
    }

    private static String requiredEnvironment(String name) {
        String value = System.getenv(name);
        if (value == null || value.isEmpty()) {
            throw new IllegalStateException("Missing configuration: " + name);
        }
        return value;
    }
}

Try-with-resources closes the result set and statement and returns the borrowed connection to UCP. The example performs a read-only query and does not configure DRCP. For transactional writes, define commit and rollback handling explicitly, or use the application's transaction manager. Manage pool shutdown through the application lifecycle and its supported UCP integration.

8. Java with JSON and AI Vector Search

Java applications can access relational tables and JSON-relational duality views through JDBC. They can also generate embeddings with compatible models or services and store and query VECTOR data using a driver version that supports the required operations. These capabilities do not require the Java application itself to run inside OJVM.

The central design decision is where code executes and who owns its resources. External Java uses an application JVM and network database connections. Stored Java uses Oracle JVM within database sessions. SQL and PL/SQL provide database operations in either design, while connection pooling and Java memory management remain separate concerns.
